Durable Quality But Competitive Price Helps Client Get Fast ROI (Return of Investment)
-
-
Pixel Pitch：Indoor P1.9/ P2.6 / P2.9 / P3.9 Outdoor P2.9 / P3.9 / P4.8
-
Creative Cabinet Maximize Stage Performance
-
The Fast ROI Choice
- Product Features: Embedded Design Led Modules | No Gaps Or Dark Lines or Bright Lines

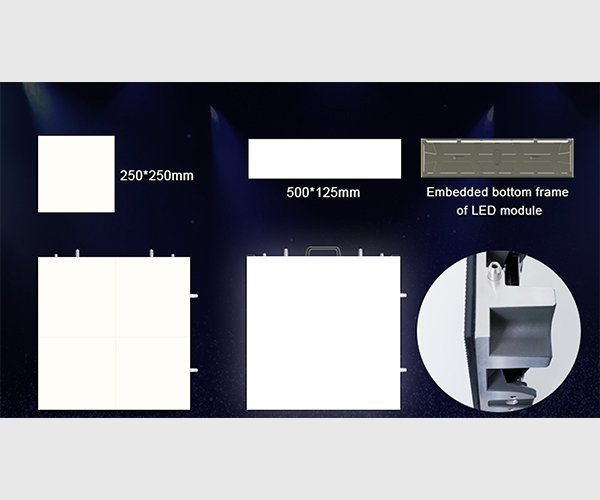

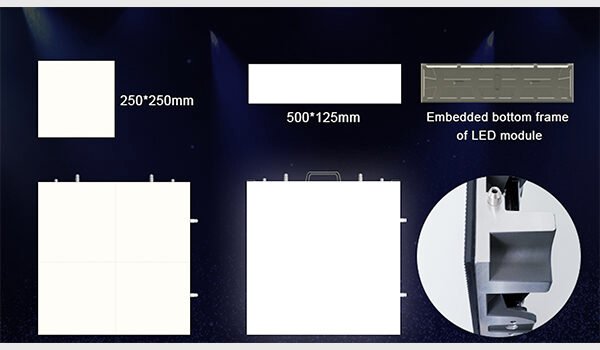

- Superior Visual Experience: 500*125mm Module size, No Cross, Embedded module Design, Unique Mask Design, No Bright and Dark Lines

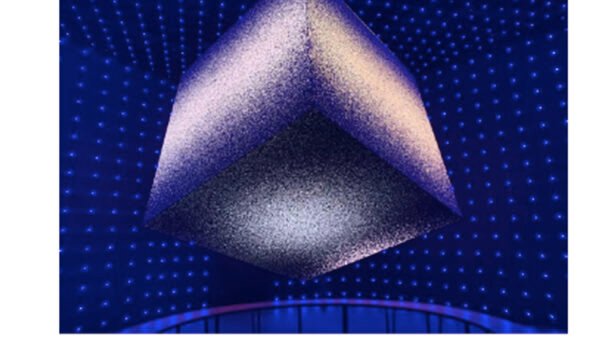

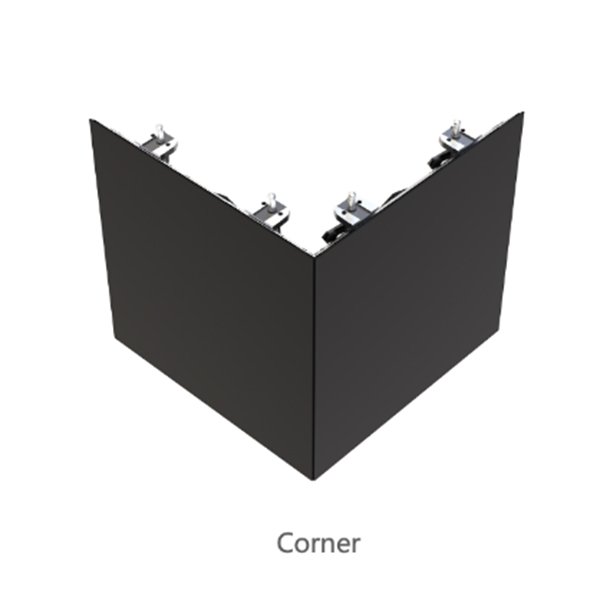

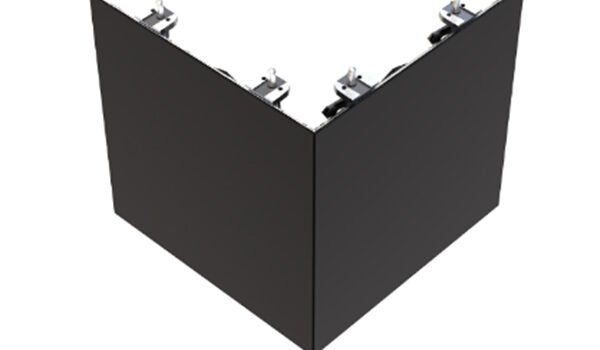

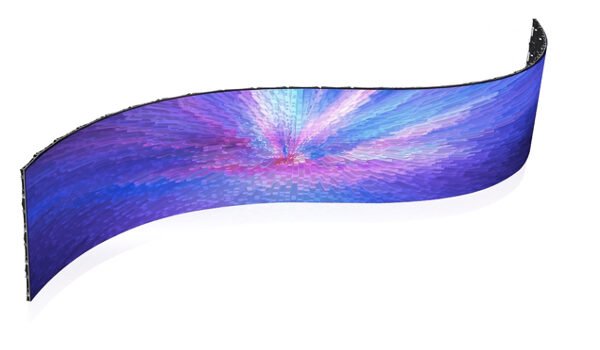

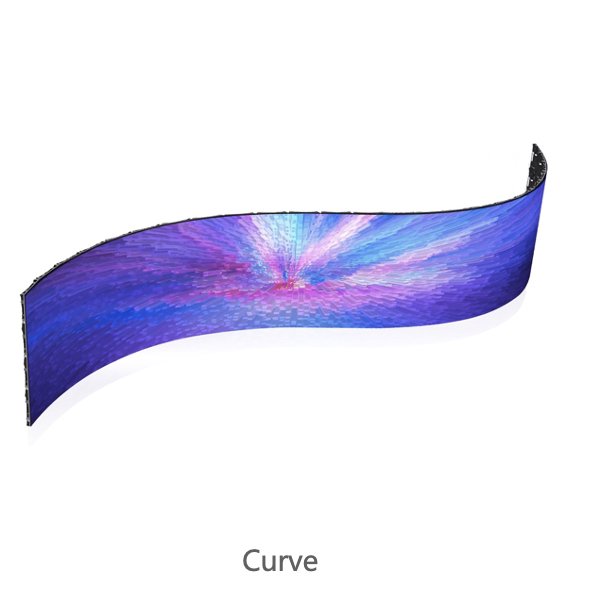

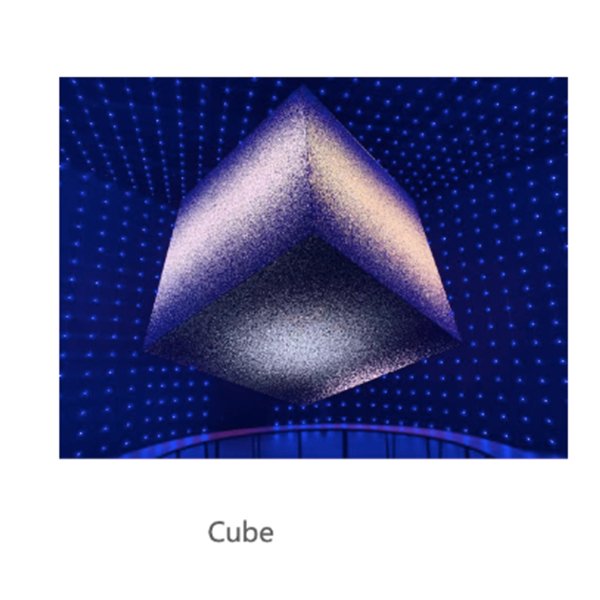

- Creative Multi-Functional: Provides More Possibilities For Creativity In Same Led Panel: Flat, Concave & Convex, 90 Degree Corner, Cube, Combination Of Flat & Curve Cabinets, Etc

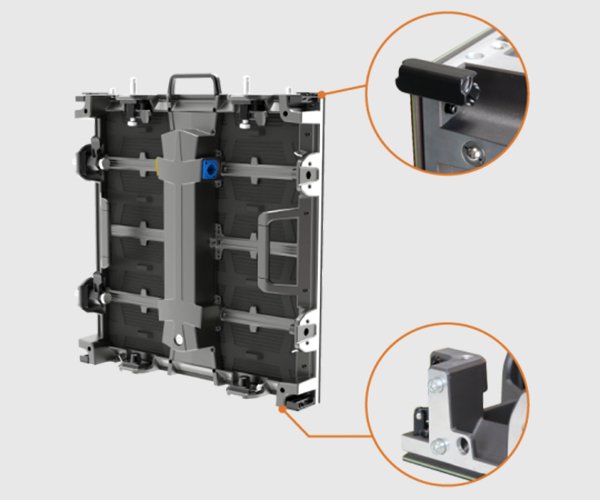

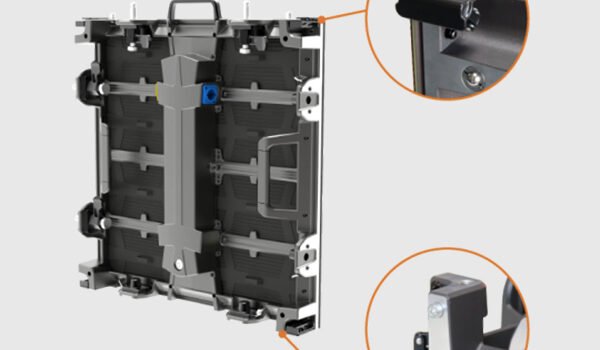

- High Stability: Excellent PCB circuit design, configured with branded material, Anti-collision welding pad design,Anti-damage pins Angle protector design

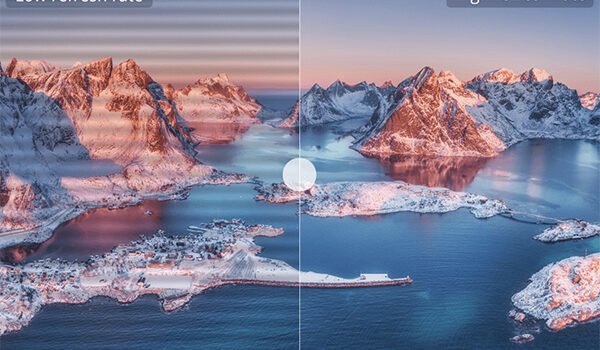

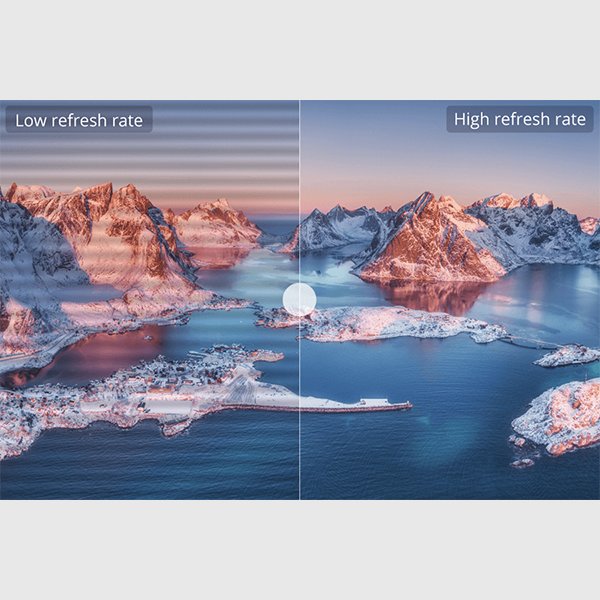

- Ultra 7680hz High Refresh Rate: -7680hz Ultra High Refresh Rate, 2mm Thickness 4 Layers PCB Enhance good Performance

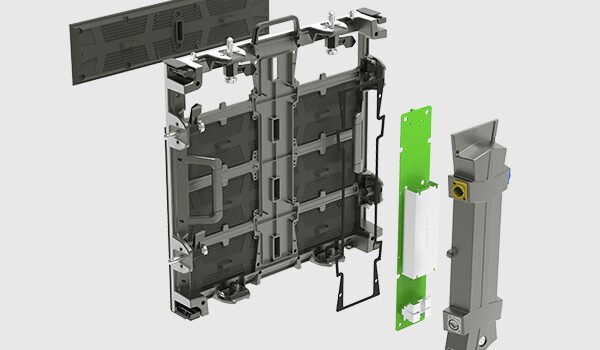

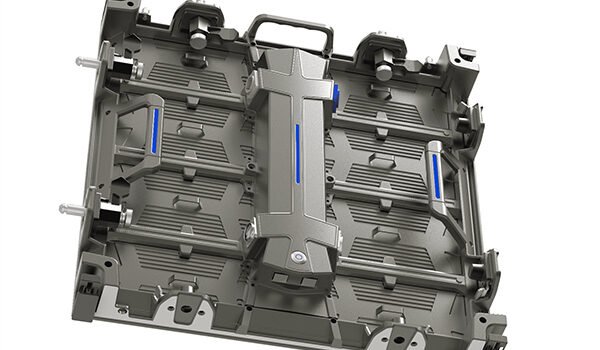

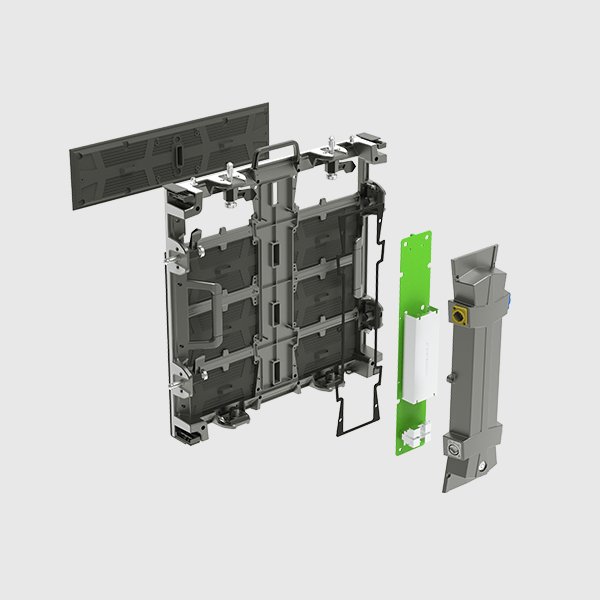

- Quick | Front & Rear Service Modules: Quick Swappable Power Box

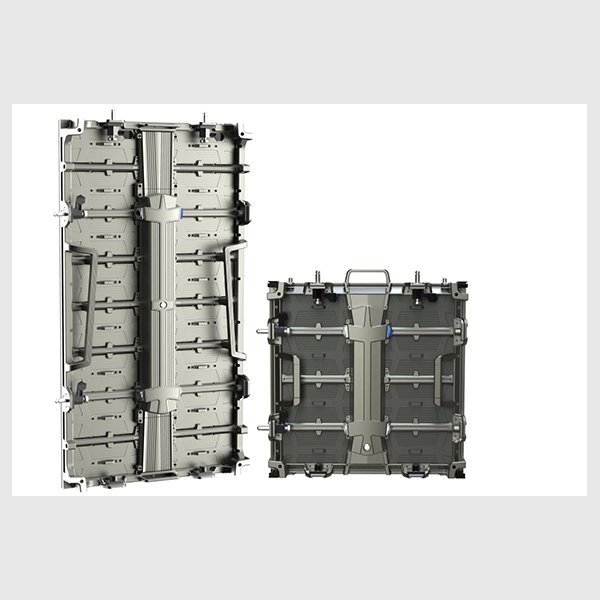

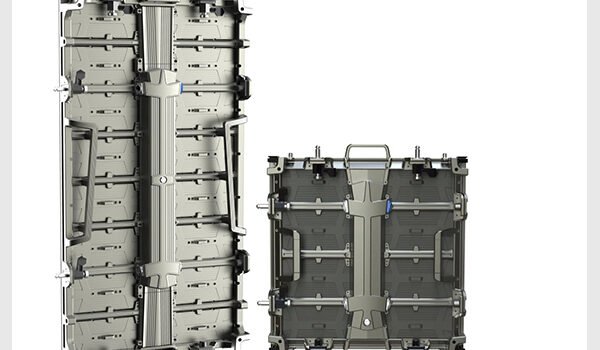

- Lighten Up and Go Large: Super lightweight and twice the size, perfect for the operation demands of extra large outdoor display applications

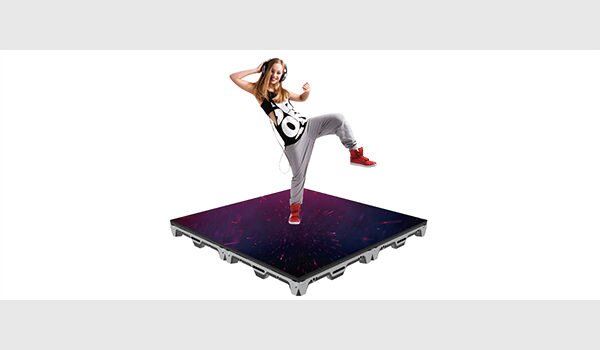

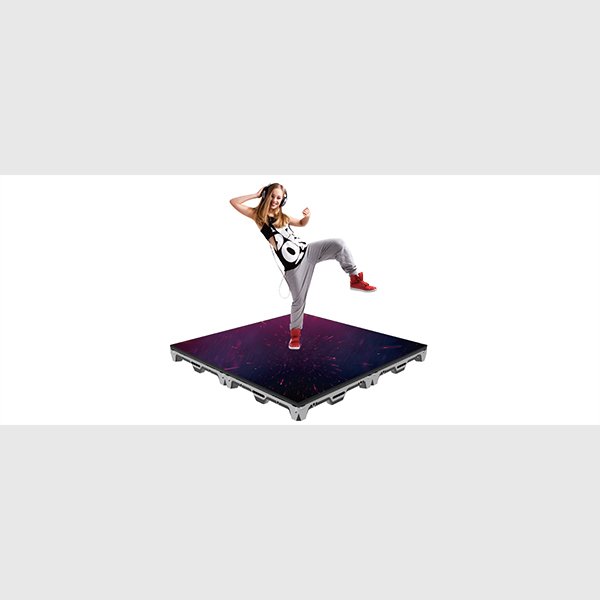

- Dance Floor | Maximize Function: Simply add acrylic panel on surface of 500x500mm led panel to be dance floor
| Model |
VR-261 |
VR-291 |
VR-391 |
VR-390 |
VR-480 |
| Pixel Pitch |
2.6 |
2.97 |
3.91 |
3.91 |
4.81 |
| Cabinet Size(mm) |
500×500 |
500×500 / 500×1000 |
500×500 / 500×1000 |
500×500 / 500×1000 |
500×500 / 500×1000 |
| Usage |
Indoor |
Indoor |
Indoor |
Outdoor |
Outdoor |
| Panel Reslution |
192×192 |
168×168 / 168×336 |
128×128 / 128×256 |
128×128 / 128×256 |
104×104 /104×208 |
| LED Type |
Nationstar SMD1515 |
Nationstar SMD1515 |
Nationstar SMD2020 |
Nationstar SMD1921 |
Nationstar SMD1921 |
| Pixel Density |
147,456Pixel/㎡ |
112,896Pixel/㎡ |
655,36Pixel/㎡ |
65,536Pixel/㎡ |
43,264Pixel/㎡ |
| Brightness |
≥1000nits |
≥1000nits |
≥1000nits |
≥4200nits |
≥4200nits |
| Gray Scale |
16bits |
16bits |
16bits |
16bits |
16bits |
| Refresh Rate |
≥7680 |
≥7680 |
≥7680 |
≥3840 /7680 |
≥3840 /7680 |
| Color Temperature |
6500-9500K |
6500-9500K |
6500-9500K |
6500-9500K |
6500-9500K |
| Panel Weight |
6.7 KG |
6.7 KG /10 KG |
6.7 KG /10 KG |
6.7 KG /10 KG |
6.7 KG /10 KG |
| Cabinet Material |
Die Casting Aluminum |
Die Casting Aluminum |
Die Casting Aluminum |
Die Casting Aluminum |
Die Casting Aluminum |
| Lifetime |
>100,000H |
>100,000H |
>100,000H |
>100,000H |
>100,000H |
| IP Rating |
IP40/IP21 |
IP40/IP21 |
IP40/IP21 |
IP65 |
IP65 |
